Products

Our comprehensive Starter Kit for precise piping alignment. This kit includes a range of specialized targets, perfect for a variety of applications. With this bundle you get (1) Flange Target 3-14, (1) Pipe Target 2-14, (2) Blind Flange Targets, (2) V-Block attachments with straps and bags, and (1) Heat Exchanger Target. All targets are 1/8” thick and made of anodized aluminum for long-lasting use.

Introducing our standard 150# Flange target for pipes ranging from 3" to 14". Made from 1/8" thick anodized aluminum, matching most gasket thickness, and equipped with a gimbal in the center, these targets allow for a wide range of shooting positions 90 degrees from center. Each target comes with four line-up pins in custom step and size variations to accommodate a range of bolt patterns, ensuring precise alignment every time.

A 150# flange target ranging from 12” to 24” with 3 gimbals - one in the center and one on each end - allowing for a wide range of positions and equipped with 4 step-and-size line up pins to fit various bolt patterns while maintaining precise alignment of the pipe face.

Upgrade your Point of Connection with our large bore 150# flange target, designed for 12” to 48” pipes with custom-made step line up pins from aircraft aluminum, and military-grade anodizing for added durability. Equipped with 5 gimbals, including 1 center and 4 outer-wing gimbals. Each wing is detachable for easy transport and flexibility of setups to match your field requirements.

This is our most versatile target system. The Blind Flange Targets are designed to be clamped on the outside of most flanges, 90 degrees from each other. Featuring a reversible clamping block, our targets can accommodate wider flanges up to 3 1⁄2” thick. Plus, the front plate includes vertical and horizontal levels for precise leveling and a gimbal for flexible shooting angles 90 degrees from center.

Maximize the Blind Flange Target’s versatility with our V-Block attachment, which allows for easy mounting of the BF Target using included ratchet straps. Ideal for 90 or 180-degree setups, our targets can be placed horizontally or vertically along the pipe at cut locations or Points of Connection (P.O.C.) for added convenience.

The Pipe Target is compatible with pipes ranging from 2” to 14” or metric pipe 63mm to 355mm. Spring action steel clips allow for secure attachment to grooved, welded, or plain end pipes. Made from durable 1/8” thick anodized aluminum, our Pipe Target features a center-point gimbal for flexible shooting angles.

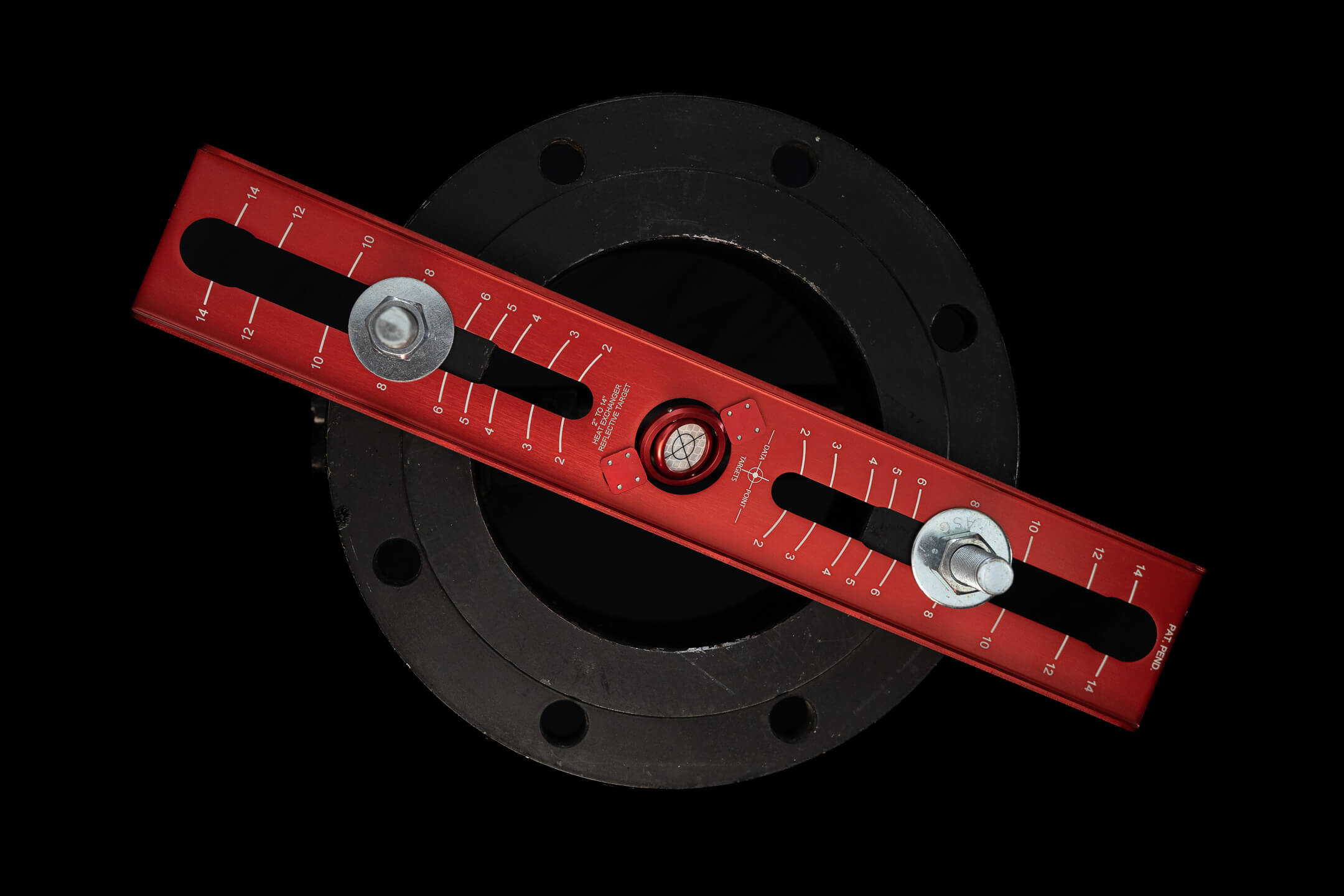

Streamline your Heat Exchanger alignment with our specialized Heat Exchanger Target, compatible with threaded rods protruding from the equipment. Simply secure the target to the rods and utilize the center-point gimbal for precision shooting. This target ranges from 2” to 14” bolt patterns and features 1/8” thick anodized aluminum, matching most gasket thickness.
